Cast and Ductile Iron Y-Strainer by SSI

Cast and Ductile Iron Y-Strainer by SSI

Class 125    |    Cast and Ductile Iron Y-Strainer    |    ASTM A126-B    |    2” to 16”   |    Flanged

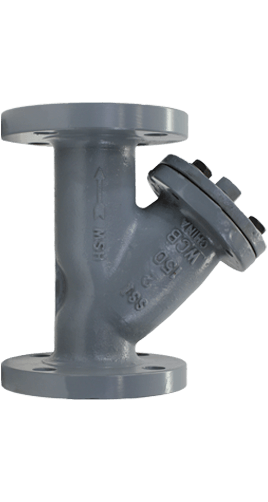

Class 125 Flanged Cast Iron Y-Strainer from SSI Image
Class 125 Flanged Cast Iron Y-Strainer from SSI Logo

SSI products are engineered and manufactured to provide high-quality valves at competitive prices. SSI has successfully developed a reputation for manufacturing industry leading cast iron y-strainers.

As well as cast iron y-strainers, SSI also manufactures basket strainers, butterfly valves, triple duty valves, suction diffusers, check valves, foot valves utilizing state-of-the-art, computer controlled, automated machining equipment.

Cast and Ductile Iron Y-Strainer

Product Description:
SSI manufactures cast iron y-strainers that are long-lasting, functional, cost-effective, and are well suited for commercial and industrial use. SSI cast iron y-strainers are suitable for a full range of steam, liquid, gas & oil, power, pulp & paper, process equipment, chemical, metal & mining and water & waste applications.

Features Include:
• Pressure rated to 200 PSIG
• Available in sizes of 2″ to 16″
• Upper and lower machined seats
• Generous screen area and properly proportioned straining chamber to minimize initial pressure drop while maximizing time between
• Temperatures to 450º F
• One piece cast body
• NPT, SE and FF connections designed in accordance with ASME B16.15, B16.18 and B16.1

End Connection:
• Flanged (FLG)

Class 125 Flanged Cast Iron Y-Strainer from SSI Technical Drawing

Our SSI Cast Iron Y-Strainers have the following Build of Materials and Product Specifications:

No. Part Name Material
1. Body Cast Iron A126-B
2. Cover Cast Iron A126-B
3. Screen1 304 SS
4. Plug Cast Iron A126-B
5. Gasket1 Graphite
6. Bolt/Stud2 A307-B
7. Nut2 A563
DIMENSIONS inches (mm) and WEIGHTS pounds (kg)
Size A B C D E Weight
16
(400)
421/2
(1080)
331/16
(840)
46
(1168)
16
(406)
2
(50)
1224
(555)
14
(350)
373/8
(349)
3011/16
(780)
41
(1041)
14
(356)
2
(50)
815
(370)
12
(300)
30
(762)
221/16
(560)
31
(787)
12
(305)
2
(50)
650
(295)
10
(250)
26
(660)
191/8
(486)
2611/16
(678)
10
(254)
2
(50)
390
(117)
8
(200)
213/8
(543)
163/8
(416)
23
(584)
8
(203)
11/2
(40)
243
(110)
6
(150)
181/2
(470)
125/8
(321)
1711/16
(449)
6
(152)
11/2
(40)
154
(70)
5
(125)
163/8
(416)
115/8
(295)
161/8
(410)
5
(127)
11/4
(32)
115
(52)
4
(100)
137/8
(353)
95/8
(245)
133/8
(340)
4
(102)
1
(25)
75
(34)
3
(80)
115/8
(295)
81/2
(216)
121/4
(311)
3
(76)
1
(25)
43
(20)
21/2
(65)
103/4
(273)
81/16
(205)
111/4
(286)
21/2
(64)
1
(25)
35
(16)
2
(50)
87/8
(226)
61/8
(156)
81/2
(232)
2
(51)
1/2
(15)
22
10

All rights reserved. All valves information and its contents hereof are proprietary. Any unauthorized reproduction or disclosure, in whole or in part, is strictly prohibited. All valves materials, images, and data sheets in this catalogue/brochure is for general information and shall not be used for specific performance data and material selection without first consulting with ValvSource Equipment Ltd. ValvSource Equipment Ltd. reserves the right to change the enclosed valves information without notice. ValvSource Equipment Ltd. does not accept any liability or damages arising from the use of any valve information within this website. All trademarks and registered trademarks are owned by their respective companies.

Product Brochure

Download more in-depth technical specifications for our line of cast iron y-strainers by clicking on any of the above literature thumbnails.

For almost 15 years, ValvSource Equipment has continually committed itself to offer the best cast iron y-strainer products to meet a wide range of applications and requirements.

As an industry leader, ValvSource Equipment has your perfect cast iron y-strainers solution. Our success in the valves industry is attributed to our customer-centric team of sales personnel, engineers, and trained staff that are collectively committed to providing quality products at a price you would come to expect.

To find your perfect valve solution, please call ValvSource Equipment today or email us at [email protected].
